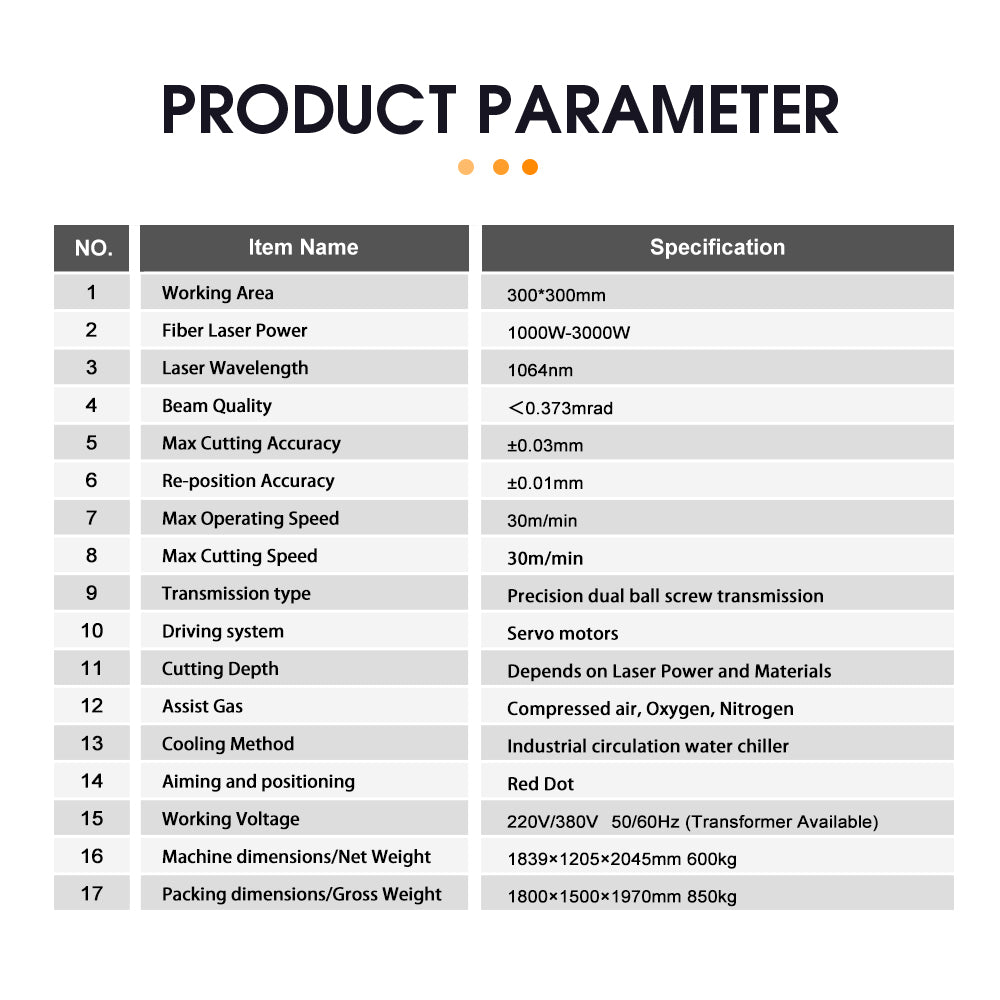

Parameters

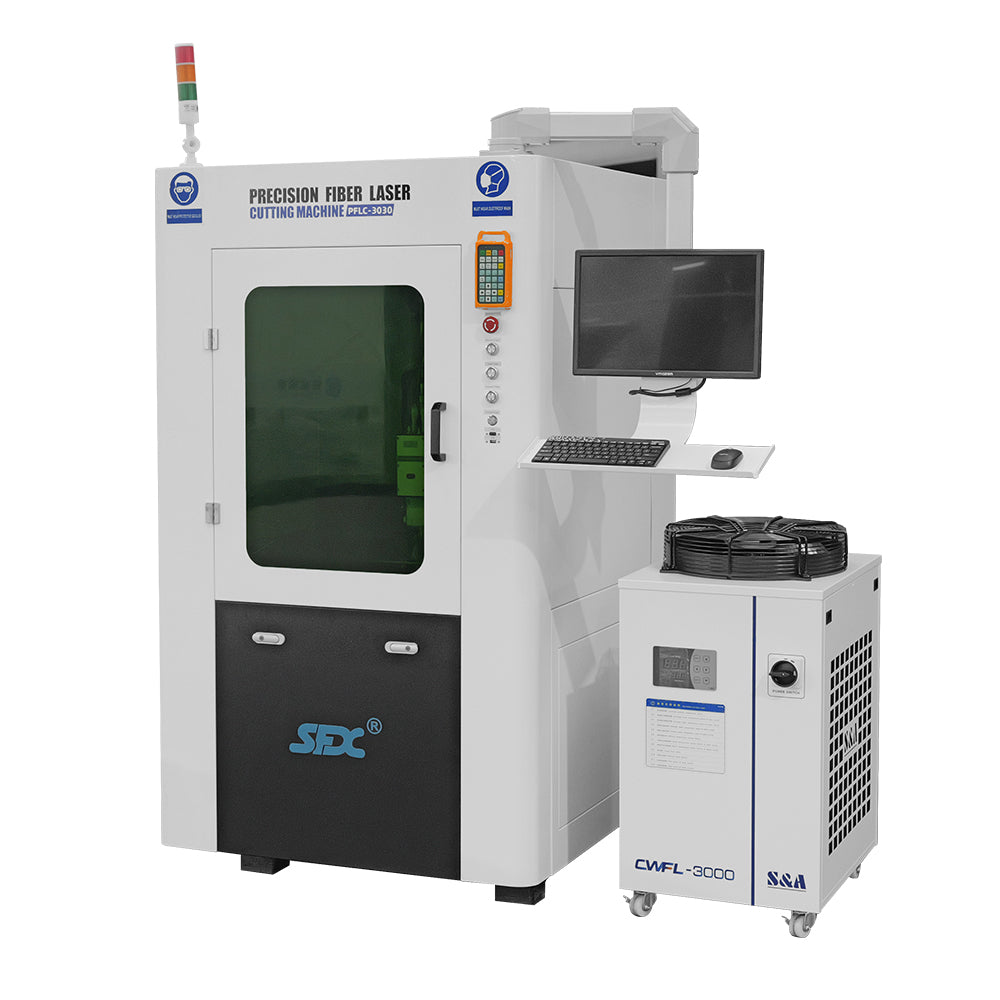

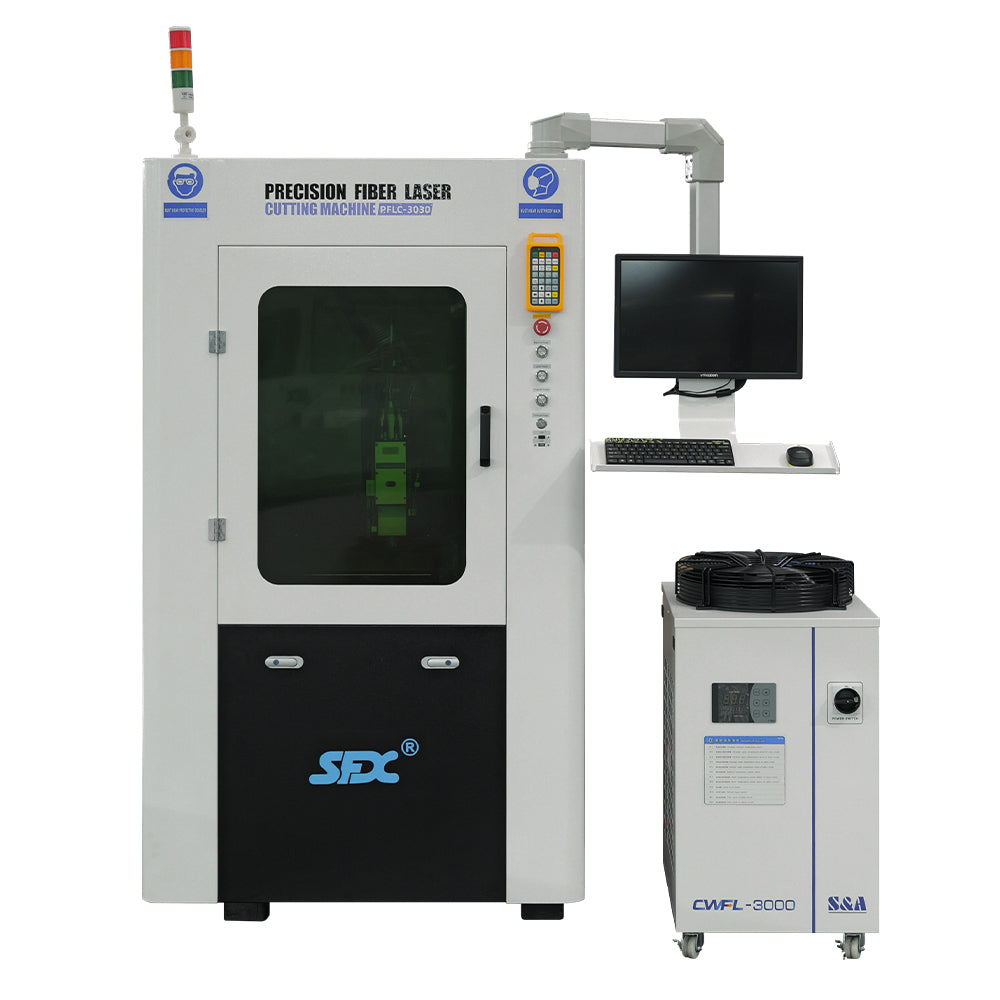

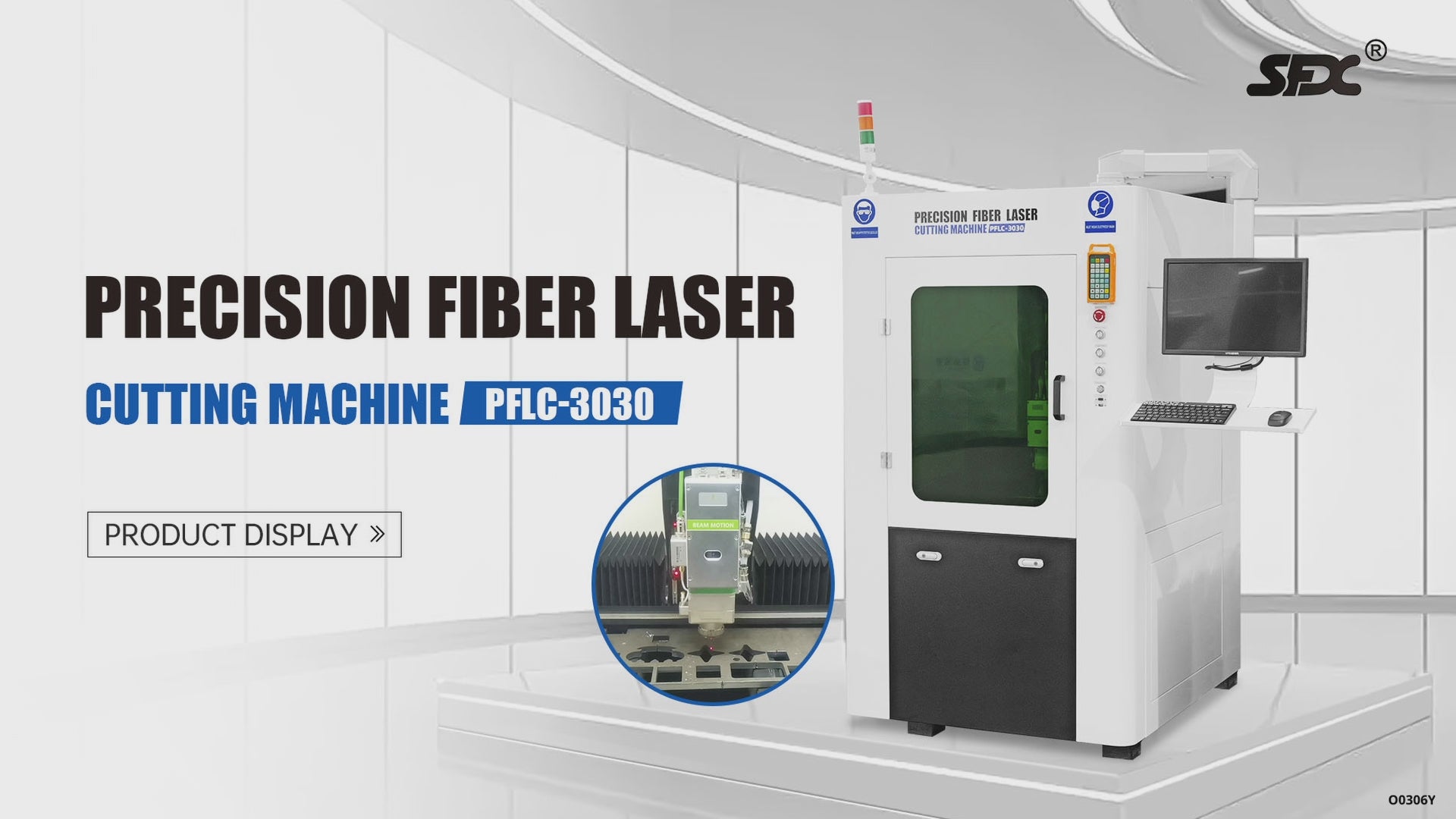

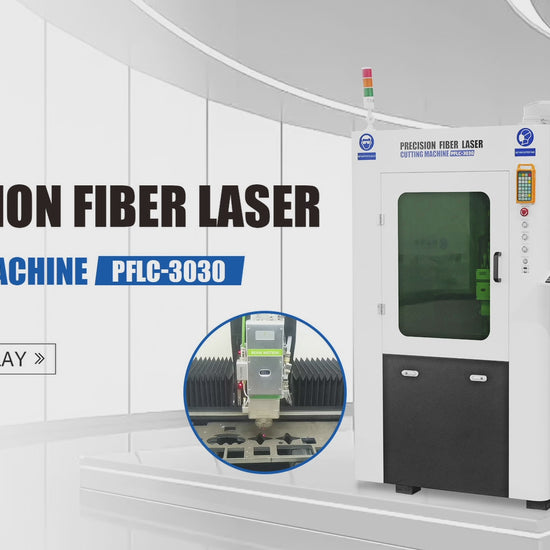

- Model: PFLC-3030
- Working Area: 300mm x 300mm
- Fiber Laser Power: 1000W / 1500W
- Laser Wavelength: 1064nm
- Beam Quality: <0.373mrad
- Max Cutting Accuracy: ±0.03mm
- Re-position Accuracy: ±0.01mm
- Max Operating Speed: 30m/min
- Max Cutting Speed: 30m/min
- Transmission Type: Precision Dual Ball Screw Transmission
- Driving System: Servo Motors
- Cutting Depth: Depends on Laser Power and Materials
- Assist Gas: Compressed Air, Oxygen, Nitrogen
- Cooling Method: Industrial Circulation Water Chiller
- Aiming and Positioning: Red Dot
- Working Voltage: 220V/380V 50/60Hz (Transformer Available)
- Machine Dimensions / Net Weight: 890*850*1830mm, 600kg
- Packing Dimensions / Gross Weight: 1550*1540*1950mm, 850kg
PRODUCT FEATURES
- Famous MAX Laser Source: The MAX laser source boasts an impressive working life exceeding 100,000 hours, ensuring high efficiency throughout its lifespan.
- High-Speed Cutting: The cutter can achieve a maximum speed of up to 30m/min, delivering precision cutting with a perfect edge.
- CYPCUT/CYPONE Software: Stable performance and easy operation with support for file formats such as DXF, PLT, AI, LXD, and more.
- RAYTOOLS Cutting Head: Equipped with a Z-axis follow-up function and automatic focal length adjustment with accuracy to 0.01mm for precise cuts.

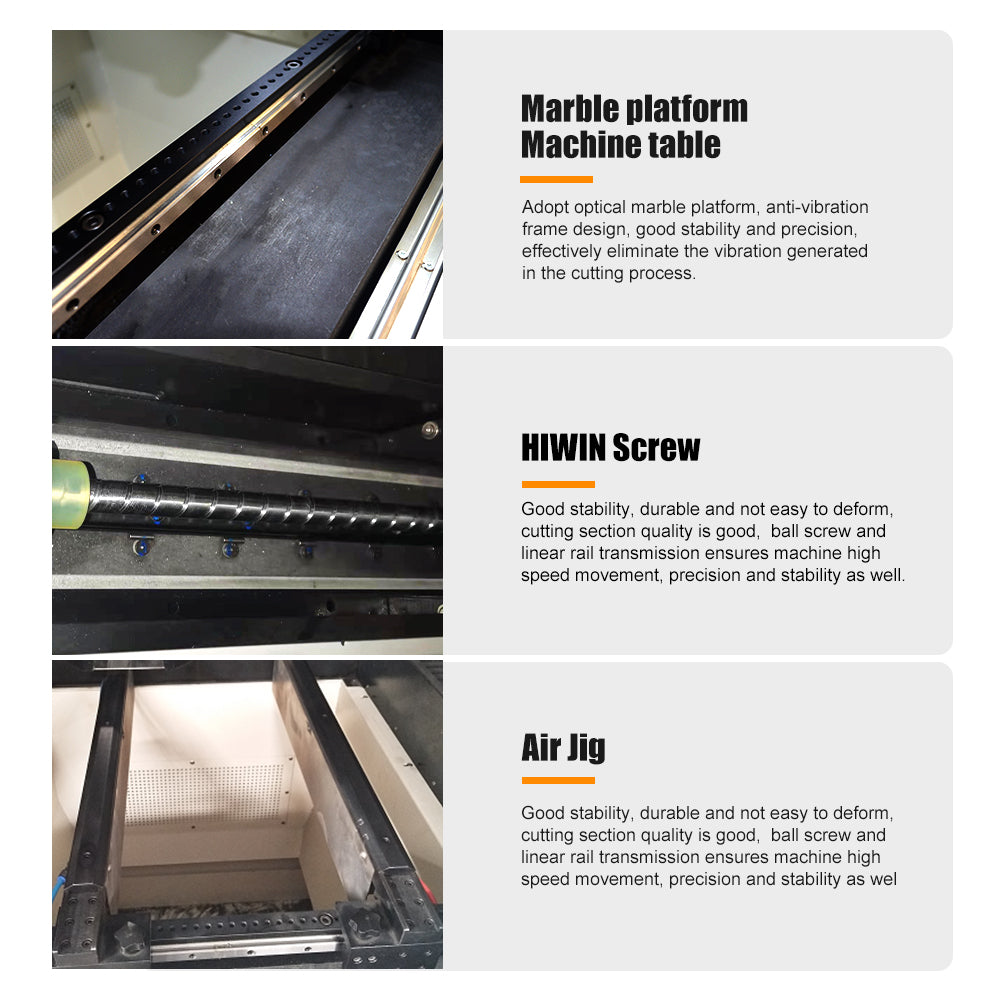

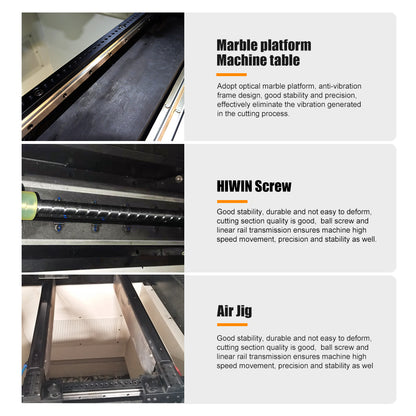

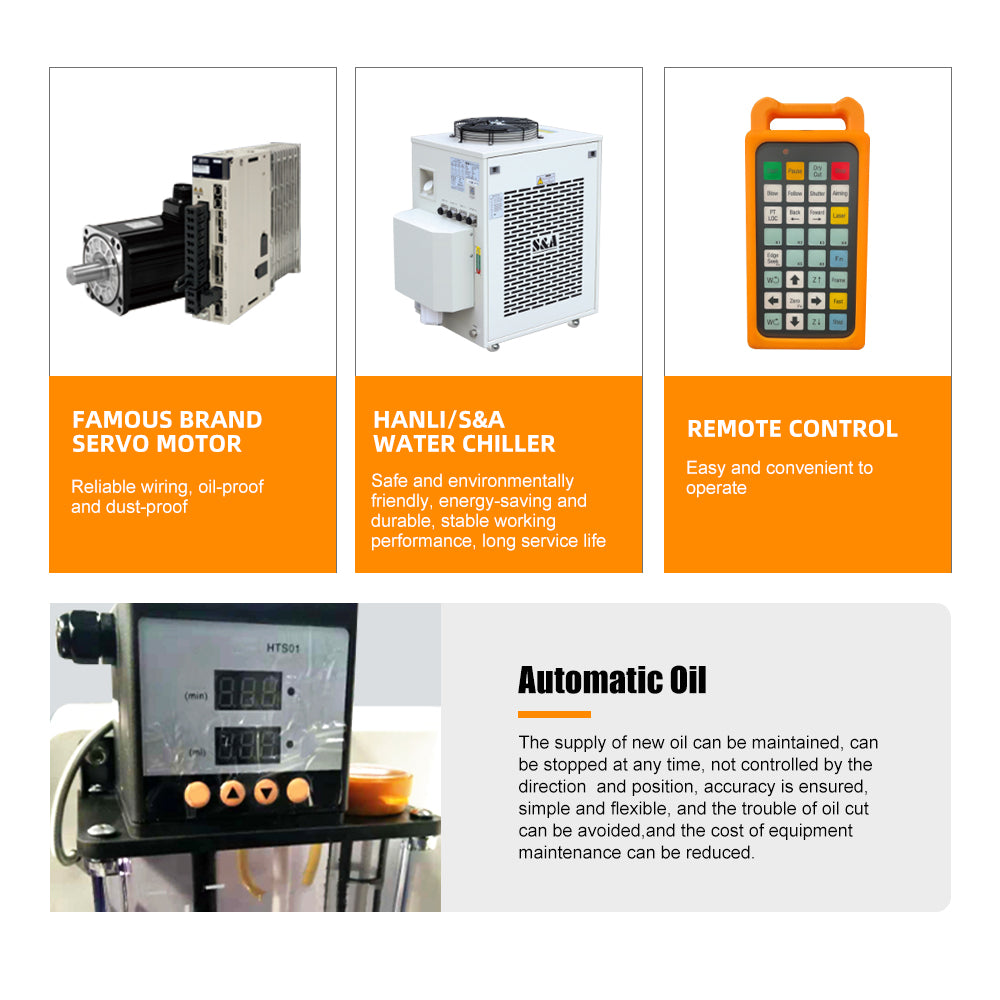

- PANASONIC Servo Motor & HIWIN Screw: These provide high-speed, high-precision movements, ensuring efficient and accurate cutting.
- S&A Industrial Water Chiller: An energy-saving water chiller with long service life, keeping the machine operating at optimal temperature.

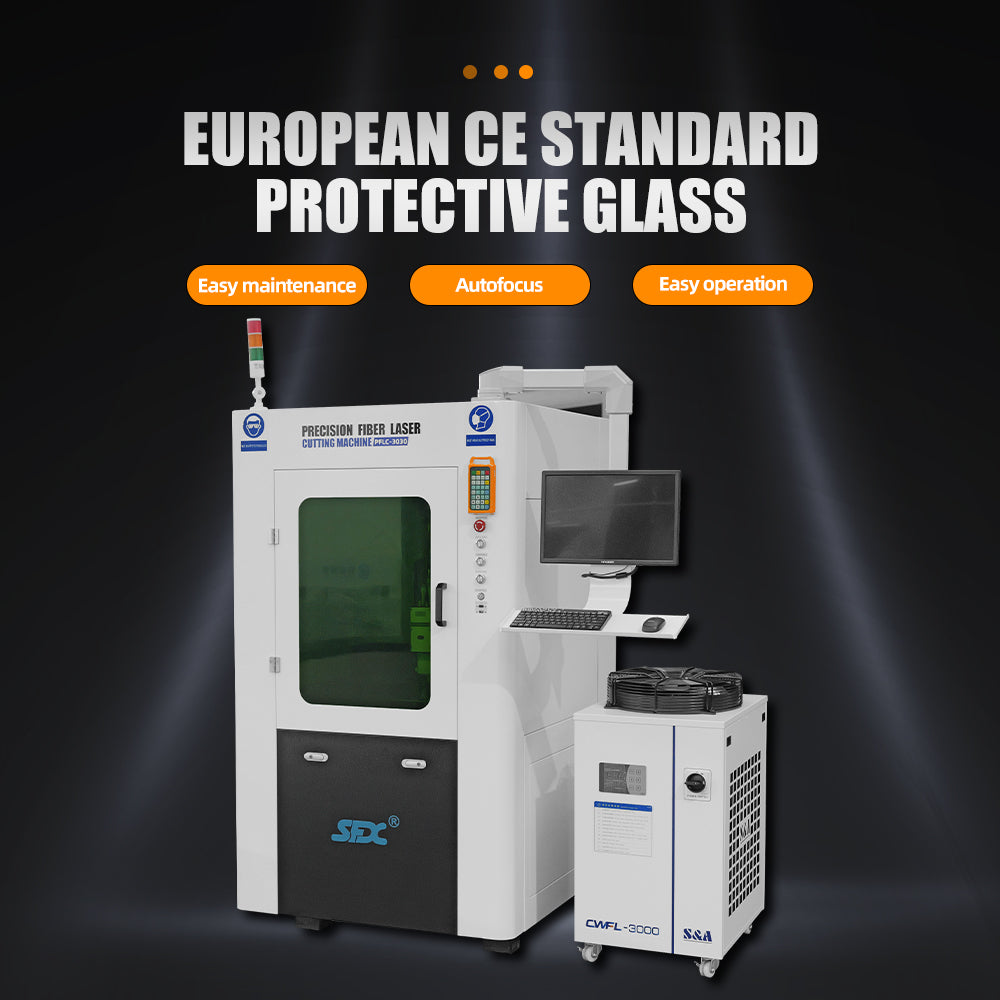

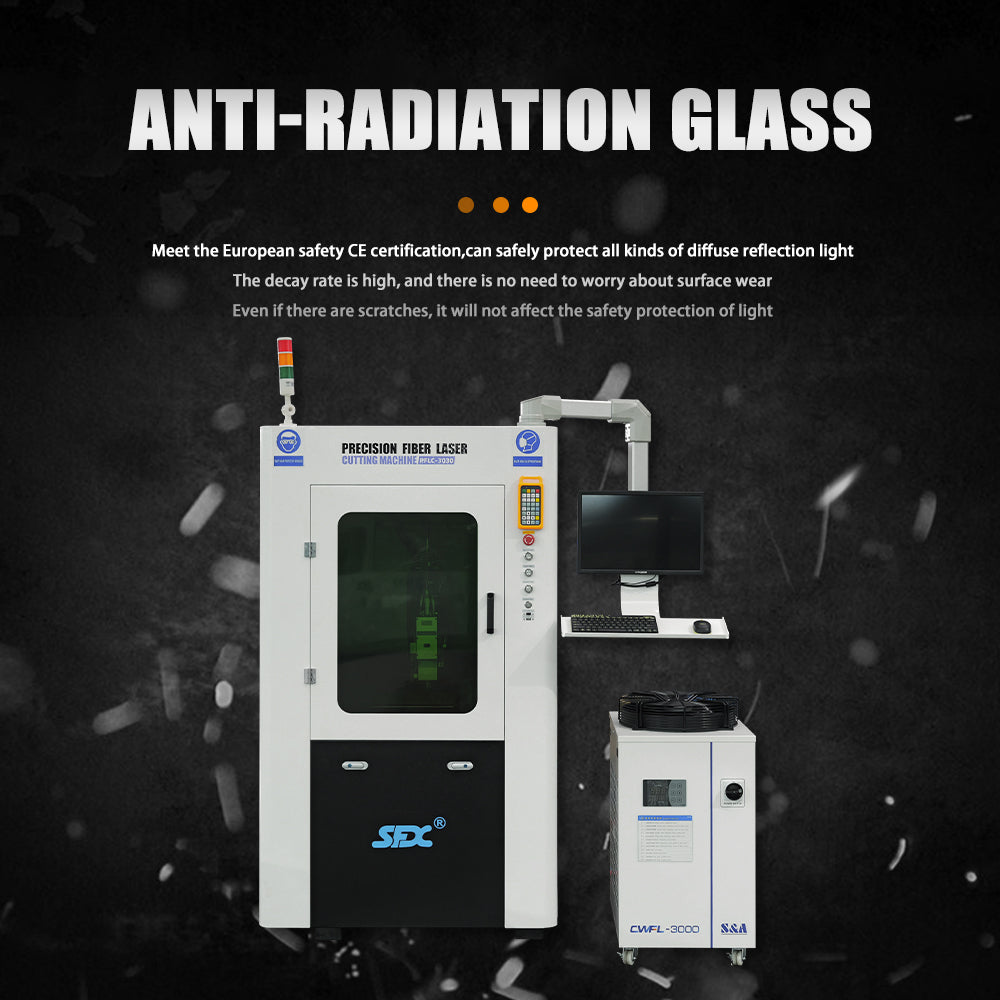

- CE Laser Protection Glass: Ensures operator safety with laser protection glasses.
- Remote Control: The cutter comes with a remote control for easy and efficient operation.
- Local After-Sales Support: Available in the US and Germany, ensuring convenient, reliable after-sales support.

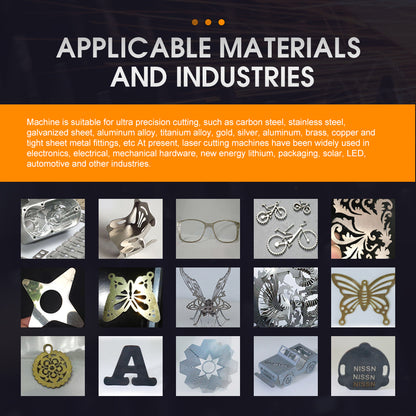

APPLICATIONS
Our precision fiber laser cutter is ideal for cutting a wide range of metal sheet plates, including:
- Stainless Steel
- Carbon Steel
- Mild Steel
- Galvanized Steel
- Aluminum
- Copper
- Silver
- Gold
