PARAMETERS
- Laser Source: 30W DAVI / 55W Coherent
- Laser Wavelength: 10.6µm
- Marking Area:
- 110x110mm (4.3x4.3in)
- 150x150mm (5.9x5.9in)
- 175x175mm (6.9x6.9in) (Optional)
- 110x110mm (4.3x4.3in)

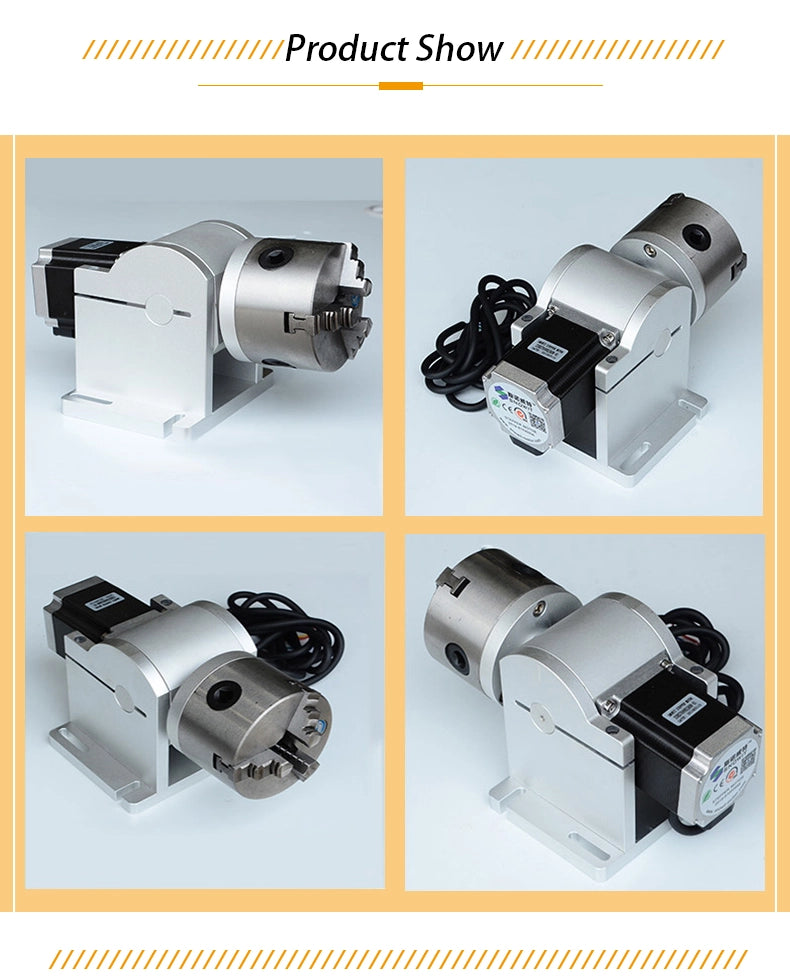

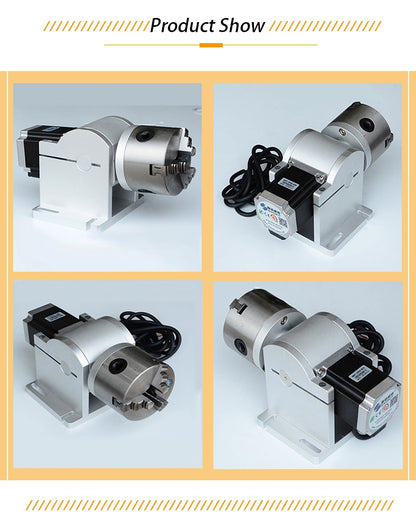

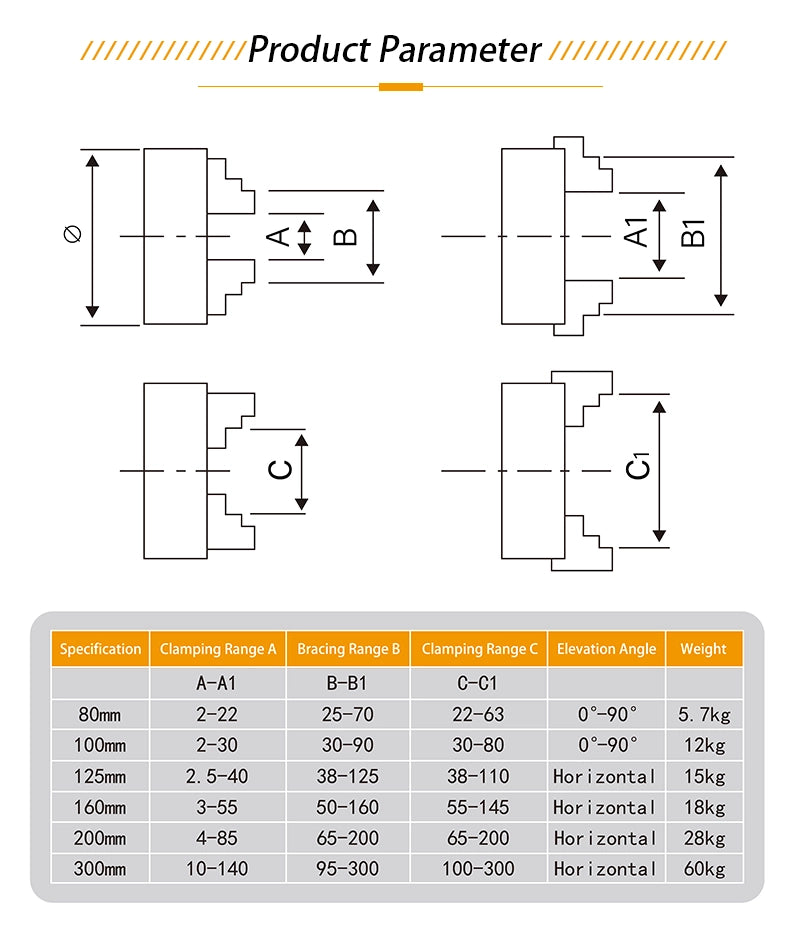

- Rotary Axis: D69 / D80 / D100 / D125mm
- Beam Diameter: 1.8±0.2mm
- Mode Quality: M² < 1.2
- Laser Repetition Frequency: 1-20kHz
- Marking Speed: 8m/s
- Engraving Depth: 0.01-2mm (depends on material)
- Minimum Line Width: ≤0.01mm (depends on material)
- Minimum Character: 0.2mm (depends on material)
- Repeat Accuracy: ±0.001mm
- Input Voltage: 110V-240V / 50-60Hz
- Communication Mode for Automation: TCP/IP, IO, RS232
PRODUCT FEATURES

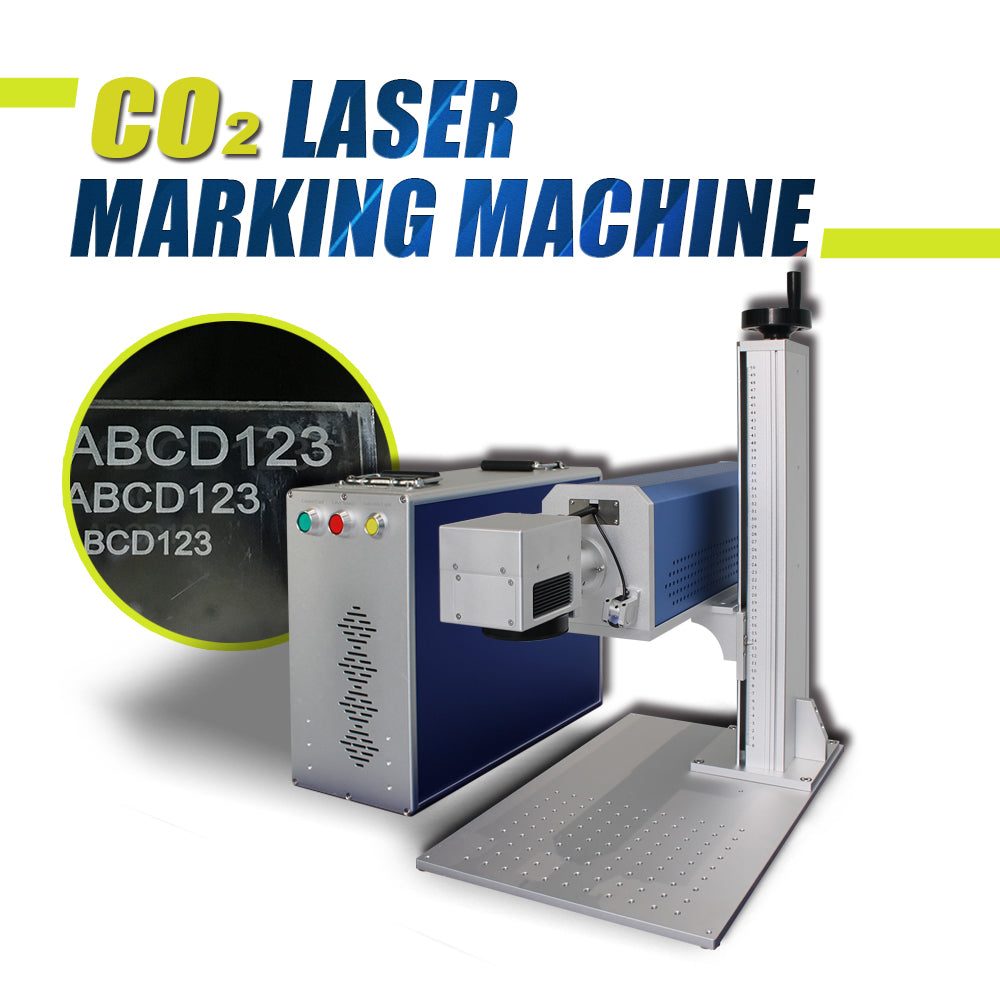

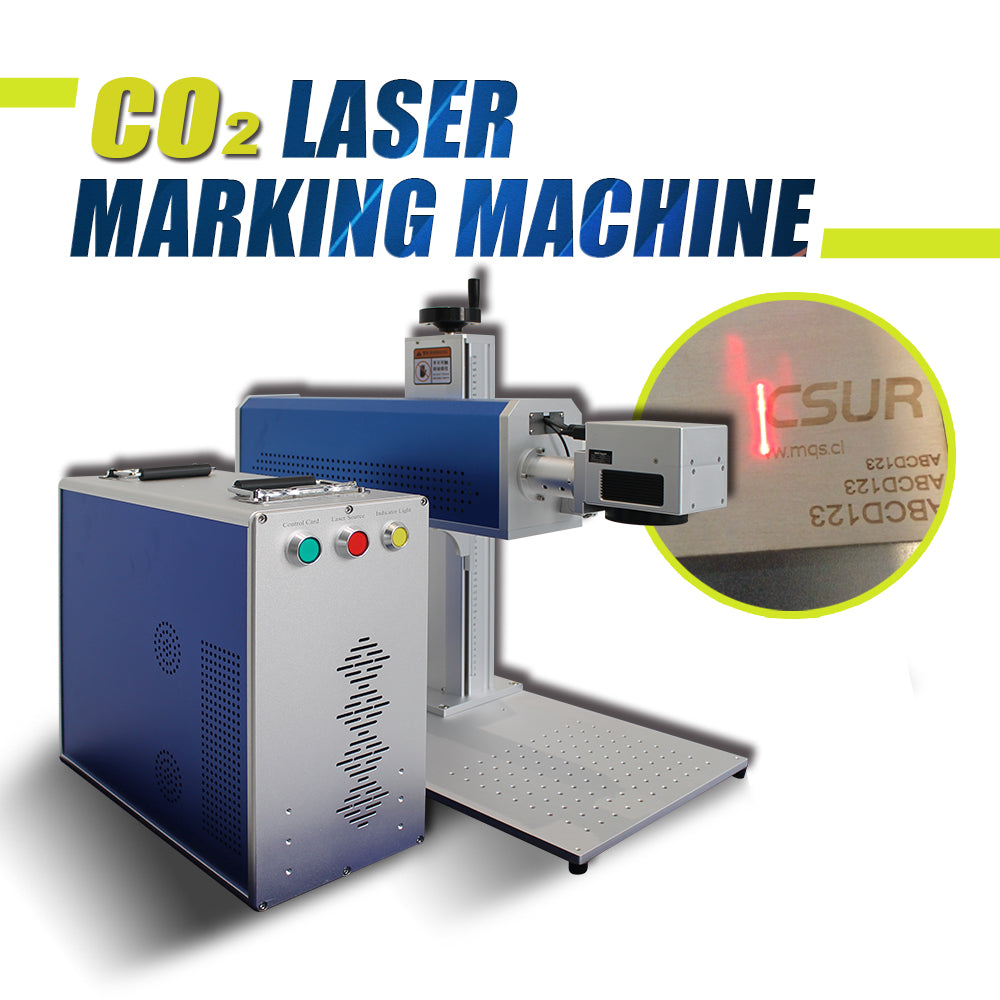

- Stable Peak Power and Excellent Beam Quality: This CO2 laser marking machine uses high-quality DAVI/Coherent lasers with stable peak power, ensuring consistent performance over time. With a working life of 20,000-30,000 hours, the machine is built for long-term use and reliability.
- Advanced Control and Higher Stability: The machine is equipped with the EZCAD 2.0 and BJJCZ control boards, offering higher stability and advanced functionality. These components ensure that the machine performs at its best across a wide range of marking applications.

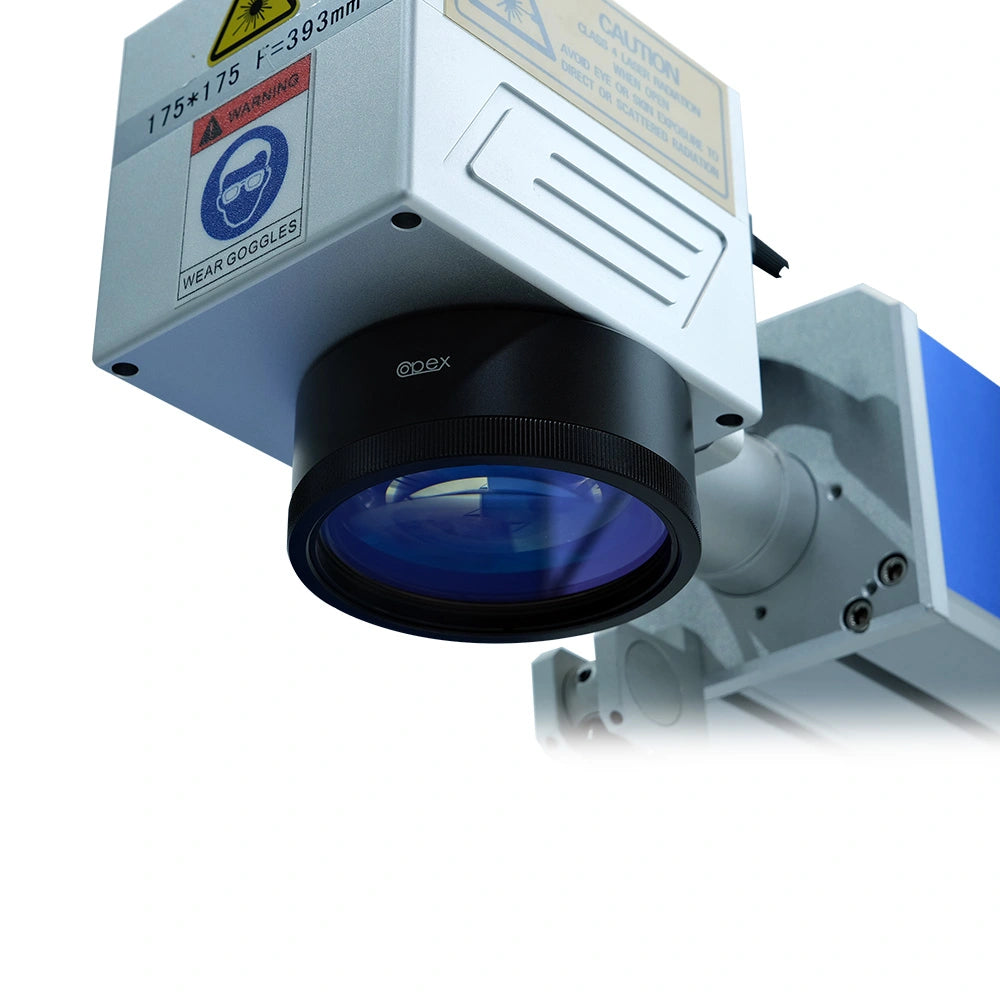

- High-Speed Marking with Sino-Galvo Technology: The system features a Sino-Galvo laser scanning system, enabling marking speeds of up to 8,000mm/s. This speeds up the production process while maintaining precise and high-quality markings.
- Versatile Software Compatibility: It is compatible with popular design software like CorelDRAW, AutoCAD, Photoshop, and supports file formats such as PLT, PCX, DXF, BMP, etc. Additionally, it can handle fonts like SHX and ITF, and support automatic functions like serial numbering, batch printing, date stamping, and QR/barcode marking.
APPLICABLE MATERIALS
The CO2 laser marking machine is ideal for various non-metallic materials, including:
- Leather
- Cloth
- Wood
- Bamboo
- Paper
- Plexiglass
- Organic Materials
- Plastic
- Epoxy Resin
